QMOUNT
The Qmount is a modern device for the light-curing-based mounting of materialographic samples.
The samples are placed in the device which is equipped with customized, powerful LED technology. The UV transparent mounting moulds are filled with the UV curing resin. The transparent sample can be removed within a very short time frame. A suction unit from the QATM portfolio can be connected to the device to increase work safety.
PRODUCT ADVANTAGES
- UV mounting in the shortest possible time (60 seconds)
- Highly efficient, long-life LED technology
- Robust machine design
- Easy handling
- Connectable suction unit (optional)
MOUNTING IN A SHORT TIME
The compact laboratory device is equipped with specially developed and durable LED boards, which irradiate the samples highly efficiently with UV radiation of a very narrowly tolerated wavelength range (emission maximum at lambda = 365 nm) and allow standard samples to cure within 60 seconds.
UV MOUNTING IN 60 SECONDS THE FAST WAY TO TRANSPARENT MOUNTED SAMPLES
ROBUST TECHNOLOGY
The integrated ventilation guarantees low polymerisation temperatures of approx. 70 – 90 ° C. A robust design with a powder-coated aluminum housing and high-quality components enable high sample volumes. The hood is equipped with cushioned hinges to close it gently.
HIGH SAMPLE CAPACITY
The device contains a scratch-resistant glass plate (200 x 260 mm) which enables the simultaneous curing of up to 12 samples with a diameter of 40 mm. The work area is easy to clean due to the simple design.
EASIEST OPERATION
The process parameters are clearly shown on a color display and can be continuously adjusted using a rotary knob. The mounting process is started, paused or ended using the QATM start-stop button. An acoustic signal informs the user at the end of the process.
MULTI-TASK VERSATILITY
Due to the very short process times, the Qmount opens up the possibility of producing transparent, materialographic standard mountings of various materials very quickly and cost-effectively.
WORK SAFETY AND COMFORT

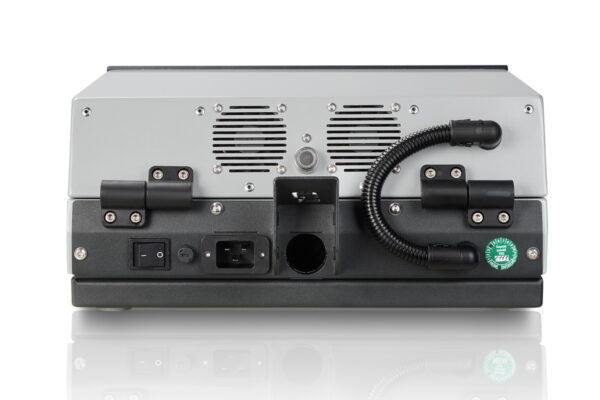

As standard, the device is equipped with a connection for external suction to filter the vapors and odors and to increase work safety. A suitable suction device with activated carbon filter is available in the QATM accessories.
HIGHLY EFFICIENT UV LED TECHNOLOGY
To minimize loss of electric power the Qmount is equipped with specialized UV LEDs. These show a very slim emission spectrum, which maximum superimposes with the absorption maximum of the KEM 50 UV initiator. This enables shorter curing times with a low electric consumption.
UV initiators get the necessary activation energy for the initiation reaction by absorbing UV radiation. Every molecule has a specific absorption spectrum, which shows certain wavelength areas in which the absorption coefficient of the molecule is particularly large. Outside of the so called absorption maxima a large portion of the emitted radiation is lost. Standard UV LEDs usually emit a significant amount of radiation besides the wavelength intervals in which the initiator has a good absorption. This radiation is converted to heat.
- Orange curve: Qmount LEDs
- Blue curve: Standard near UV LEDs
- Grey area: Absorption maximum of UV initiator
CONSUMABLES
For a perfect mounting process, QATM offers the appropriate UV curing resin, UV transparent mounting moulds in different diameters and mounting aids.
UV MOUNTING DEVICE QMOUNT
TECHNICAL DATA
| Cut-off wheel | Ø 75 – 203 mm/8″ |
| Variable speed | 150 – 3000 rpm |
| Max. cutting capacity | Ø 40 mm |
| Arbour size | Ø 12.7 mm |
| Variable adjustable cutting force | 0 – 10 N |
| Feed | manual |
| Y-axis (vertical movement) | 120 mm (manual) |
| Z-axis manual (parallel cut) | 25 mm (manual) |
| Motor power | 0.37 kW (S1) |
| Connection power | 0.75 kVA |
| W x H x D | 591 x 391 x 590 mm |
| Weight | ~ 45 kg (depends on equipment) |
Content may be subject to modifications or corrections
