QNESS 150 CS ECO
The Rockwell hardness tester Qness 150 CS ECO is part of the QATM ECO product line and combines high-quality workmanship with maximum operation simplicity. The characteristic “C” shaped machine frame in robust and compact design (“S” for “small”) gives the product its name.
The proven concept with fixed test head and up/down moving spindle has been standard in Rockwell hardness testing for many decades and is ideally suited for small to medium-sized test pieces and application in almost any work surroundings.
PRODUCT ADVANTAGES
- Large test force range (1 kg – 250 kg)
- Direct depth gauging system
- Robust, welded steel frame
- High-quality steel sheet covers
- Integrated LED workspace lighting
- Capacitive 7” touch screen display
Product Video
ROCKWELL HARDNESS TESTER QNESS 150 CS ECO TEST METHODS & FORCE RANGE
Rockwell
DIN EN ISO 6508, ASTM E-18
- HRA – HRV
- HR15-N/T/W/X/Y
- HR30-N/T/W/X/Y
- HR45-N/T/W/X/Y
Brinell
DIN EN ISO 6506, ASTM E-10
- HBW 1/1
- HBW 1/2.5
- HBW 1/5
- HBW 1/10
Vickers
DIN EN ISO 6507, ASTM E-384, ASTM E92
- HV 0.00025
- HV 0.0005
- HV 0.001
- HV 0.002
- HV 0.005
- HV 0.01
- HV 0.02
- HV 0.025
- HV 0.05
- HV 0.1
- HV 0.2
- HV 0.3
- HV 0.5
- HV 1
- HV 2
- HV 3
- HV 5
- HV 10
Plastics
DIN EN ISO 2039
- 49.03 N
- 132.9 N
- 357.9 N
- 961 N
Integrated conversions:
DIN EN ISO 18265, DIN EN ISO 50150
ROCKWELL HARDNESS TESTER QNESS 150 CS ECO SOPHISTICATED MACHINE CONSTRUCTION, ULTRA-SIMPLE OPERATION
COMPACT DESIGN - LATEST TECHNOLOGY
Modern features provided as standard:
- Controlled force application (1kg to 250kg)
- Direct depth-gauge-system (0.05μm resolution)
- Robust welded stell frame and sheet-stell covers

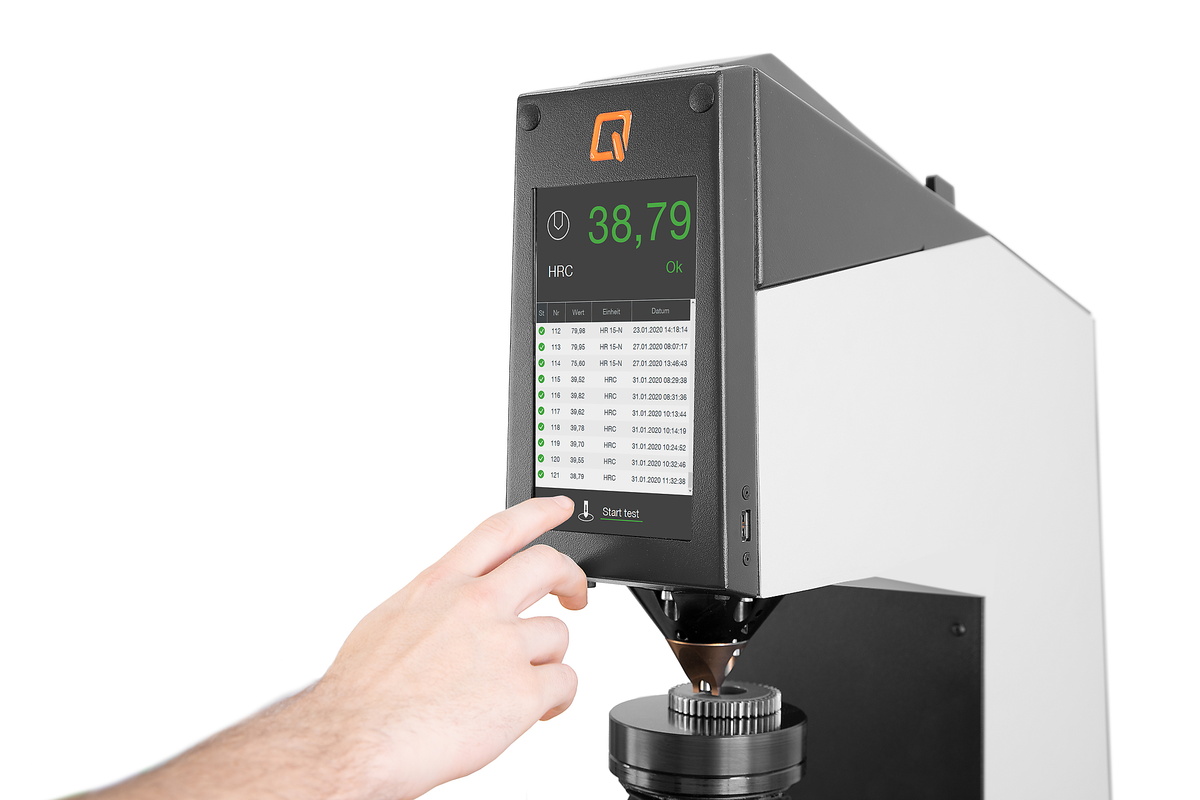

- 7” color touchscreen operation with Qpix TE software
- Digital data delivery via USB interface
- Fully automated test cycle: Electronic force application and closed-loop control
TEST TABLE HEIGHT ADJUSTMENT
Via stable, ultra-precise roller-bearing spindle guide. Solid, nomaintenance structure. Each Rockwell hardness tester is available with a Ø25 mm table mount (optional ¾” adapter available) facilitating the use of a wide range of test tables and devices.
MADE IN AUSTRIA
Unmatched in its class! We know how important a long-serving superior-quality device can be and guarantee excellent quality from our new Rockwell hardness tester series. Developed and manufactured in Austria!
ROCKWELL HARDNESS TESTER QNESS 150 CS ECO
TECHNICAL DATA
| Test force range | 1 – 250 kg (9.81 – 2452 N) |
| Height adjustment | manual / spindle |
| Test height | 250 mm |
| Throat depth | 157 mm |
| Test table | Ø 100 mm |
| Max. workpiece weight | 100 kg |
| Weight of basic device | 77 kg |
| Test sequence | fully automated / electronic force application |
| Software | Qpix TE |
| Display | 7″ capacitive touch (color) |
| Interfaces | 1x USB |
| Power supply | 100 – 240 V, ~1/N/PE, 45 – 65 Hz |
| Max. power consumption | ~60 W |
| Accessories | Additional indenters, hardness test bocks, machine pedestal, prisms |
